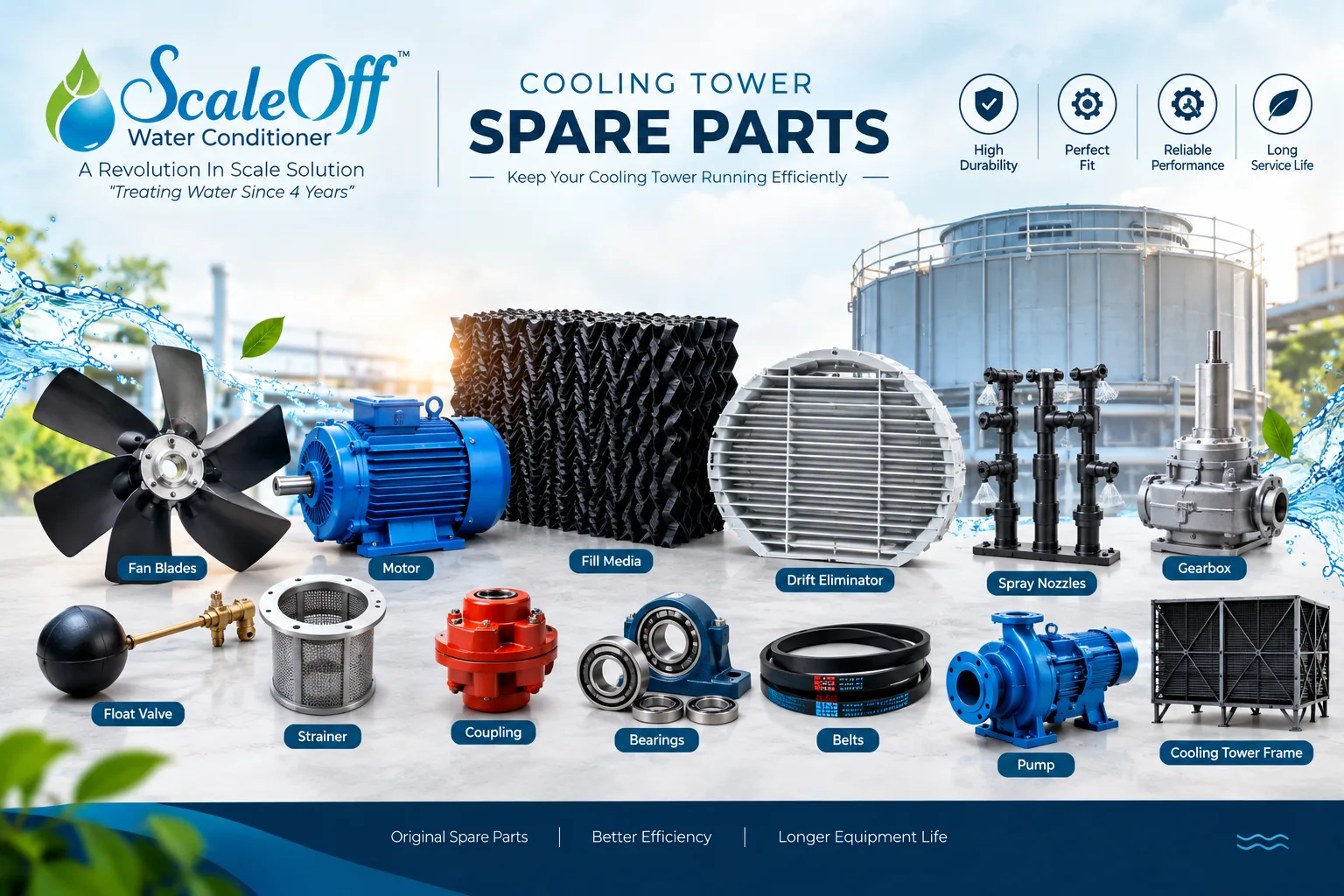

Cooling tower spare parts laid out and labelled: fan blades, motor, fill media, drift eliminator, spray nozzles, gearbox, float valve, strainer, coupling, bearings, belts, pump and tower frame

Cooling Tower Spares

Cooling tower spares and replacement parts.

We stock and supply wear parts for cooling towers of any make, not only our own. Most towers that are underperforming do not need replacing. They need the fill cleaned or renewed, the nozzles cleared and the drift eliminators refitted.

Request a quotation2 products in this range

What to know before you specify

Fill is the single largest influence on tower performance and the first thing to degrade. Once flutes clog with biofilm and silt, air flow drops, wetted surface area falls and the approach temperature climbs. Renewing the fill pack typically restores rated duty for a fraction of the cost of a new tower.

Drift eliminators matter for a different reason. When they are damaged or missing, treated water leaves the tower as droplets, which raises make up consumption and deposits scale and biocide on nearby surfaces and vehicles.

We carry fills, nozzles, eliminators, FRP fan blades, motors, gearboxes, belts and float valves, and our service crew can fit them during a planned shutdown so the plant is back on line the same day wherever the scope allows.

Products in the cooling tower spares range

Green square FRP cooling tower raised on concrete pedestals with four louvred air inlet panels

01 Cooling Tower Spares

PVC Fill and Drift Eliminators

Renew the heat transfer surface and stop water carryover

Film fill packs and drift eliminator blocks cut to your tower dimensions. Renewing clogged fill is the fastest and cheapest way to recover a tower that is no longer holding its design approach temperature.

Features

  • Film fill in 19 mm flute and low fouling grades
  • Cut and supplied to your existing pack dimensions
  • Cellular drift eliminators that cut carryover losses
  • Suits counter flow and cross flow arrangements
  • Fitted by our crew or supplied loose for your team

Specification

Fill material
Rigid PVC, UV stabilised
Flute sizes
19 mm standard, low fouling on request
Sheet thickness
0.3 mm to 0.5 mm
Eliminator type
Cellular, three pass
Supply
Cut to size or standard blocks
Fitment
Loose supply or fitted on site
Tower refurbishmentPerformance recoveryPlanned shutdown worksThird party tower servicing
Get a quotation

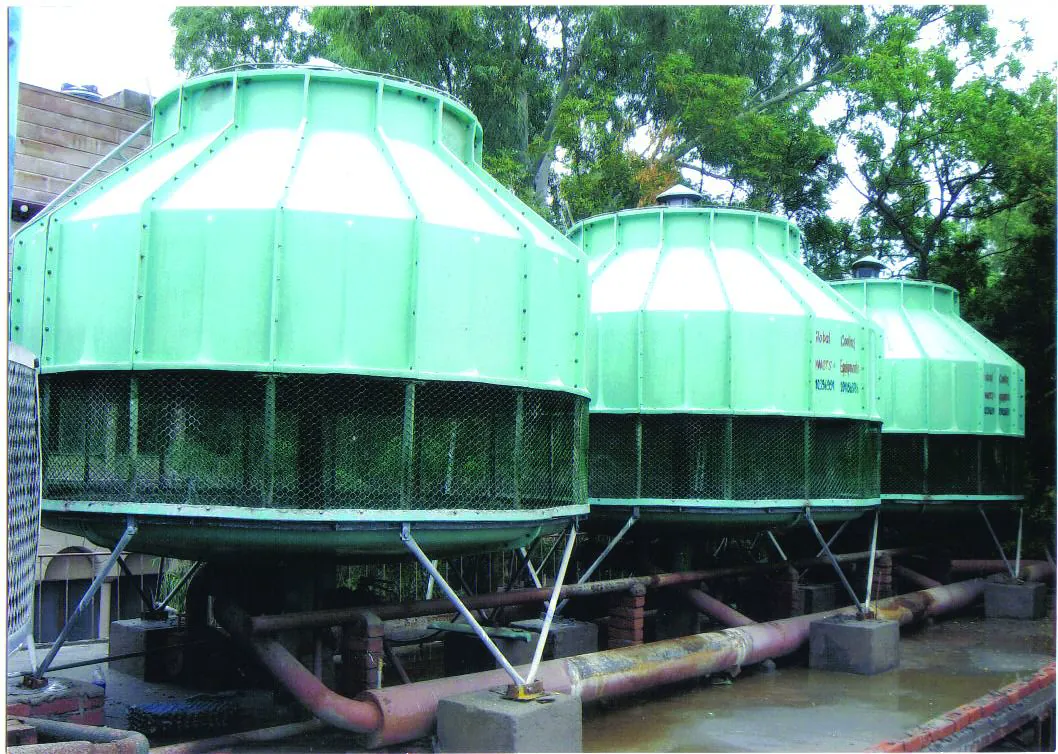

Three green round FRP cooling towers in a row on steel stands with common header pipework

02 Cooling Tower Spares

Fans, Motors and Distribution Parts

Drive train and water distribution components

FRP and aluminium fan blades, hubs, motors, gearboxes, belts, sprinkler heads, nozzles and float valves. We match to your existing equipment from the nameplate or from a sample part.

Features

  • FRP and aluminium alloy axial fan blades and hubs
  • Totally enclosed motors suited to wet cooling tower duty
  • Right angle gearboxes and drive belt sets
  • Rotary sprinkler heads and fixed spray nozzles
  • Ball float valves and basin strainers

Specification

Fan blades
FRP or aluminium alloy
Motor type
Totally enclosed, cooling tower duty
Drive
Direct, belt or gearbox
Nozzles
ABS and polypropylene
Matching
From nameplate or sample part
Availability
Common sizes from stock
Breakdown replacementPreventive maintenanceEnergy efficiency upgradesNoise reduction retrofits
Get a quotation

Other product ranges

Next step

Tell us the duty and we will size it

Send your heat load, flow rate and site conditions, or simply describe the problem. An engineer will come back with a sized selection and a budget figure, not a brochure.
